Meat Processing

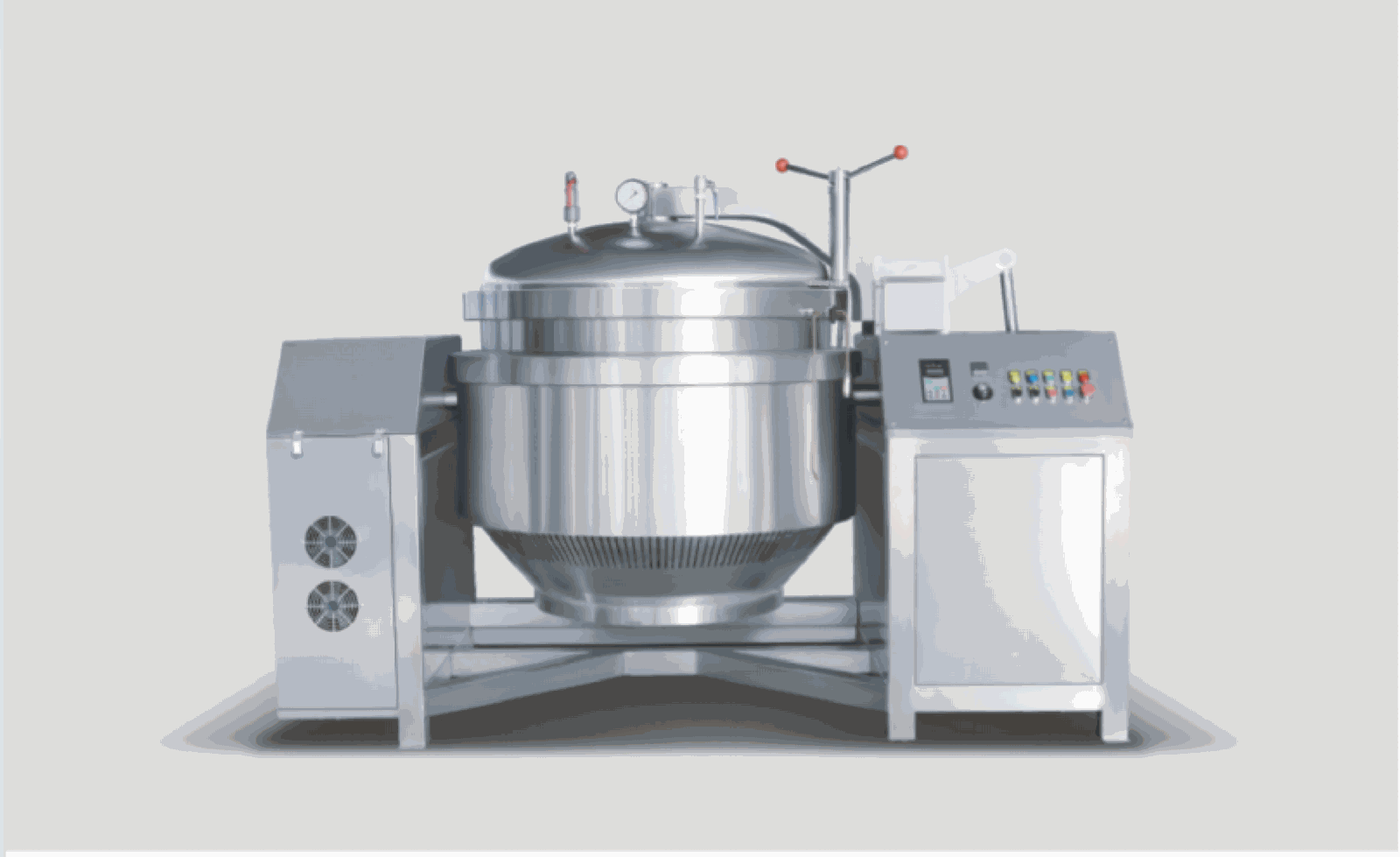

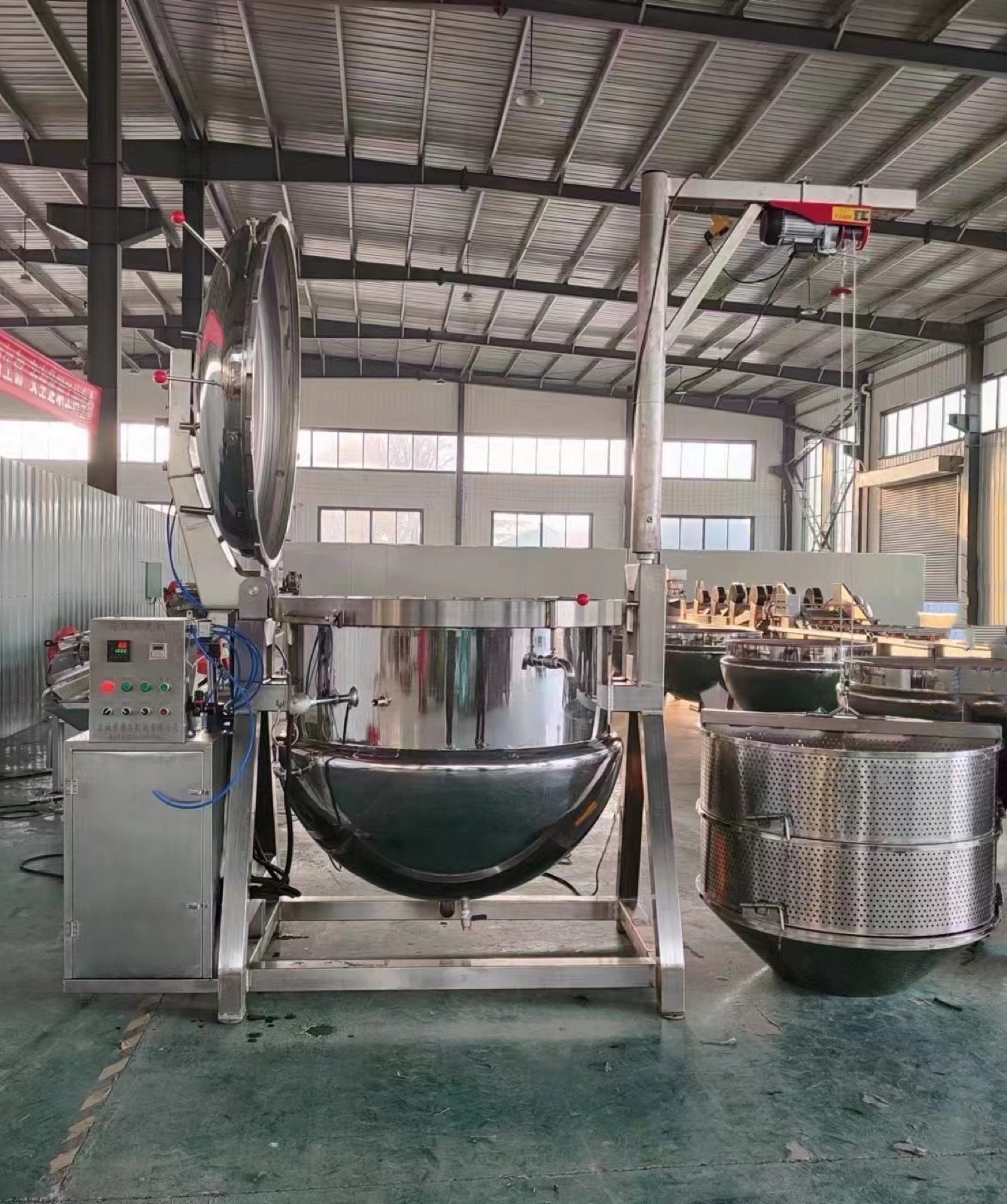

100-2000 Liters Steam Boiling Autoclave
100-2000 Liters Steam Boiling Autoclave: Applicable Industries: Meat processing plants (braised meat, sauce-marinated meat production), central kitchens of catering chains (standardized pre-made dishes), food export enterprises (EU/US food safety compliance)
Specifications
| Size: | 100-2000L volume capacity |
|---|---|
| Material: | food grade SS304 |
| Capacity | 100L-2000L (customizable to 2500L-5000L) |
| Heating Method | 304 stainless steel electric heating tube (number: 2-8, depending on capacity) |
| Rated Temperature | 100℃-135℃ (adjustable in 1℃ increments) |
| Rated Pressure | 0-0.2MPa (adjustable in 0.01MPa increments) |
| Control System | PLC automatic control + 7-inch color touchscreen (supports Chinese/English) |
| Inner Tank Material | 304 stainless steel (thickness: 3mm-8mm, capacity-dependent) |
| Insulation Material | Aluminum silicate cotton (thickness: 50mm) |
| Power Supply | 380V/3P (50Hz); 220V/1P customizable for 100L model |
| Power | 15kW (100L)-120kW (2000L) |
| Safety Devices | Safety interlock, safety valve, temperature sensor, pressure relay, overcurrent protection, water level alarm |
| External Dimension (L×W×H) | 1200×800×1500mm (100L)-3500×1800×2500mm (2000L) |
| Net Weight | 300kg (100L)-3000kg (2000L) |
| Certification | ISO 9001:2008 |
Why buyers choose it
- Capacity Range: 100L to 2000L (customizable to meet small-batch startup needs and large-scale factory production demands)
- Core Technology: Electric-driven steam heating + fully automatic PLC control, no manual intervention required during the cooking process
- Core Advantages: Reduces 30% labor cost, shortens 20% cooking time, ensures ≤2℃ temperature difference for the same batch of meat, and meets global food hygiene standards
- For export-oriented enterprises, this autoclave is a "compliance partner".
- Safety Interlock: The device cannot start if the door is not closed tightly; the door cannot be opened if the internal pressure is higher than 0.02MPa
Applications
Capacity Range: 100L to 2000L (customizable to meet small-batch startup needs and large-scale factory production demands)
Core Technology: Electric-driven steam heating + fully automatic PLC control, no manual intervention required during the cooking process
Applicable Industries: Meat processing plants (braised meat, sauce-marinated meat production), central kitchens of catering chains (standardized pre-made dishes), food export enterprises (EU/US food safety compliance)
Core Advantages: Reduces 30% labor cost, shortens 20% cooking time, ensures ≤2℃ temperature difference for the same batch of meat, and meets global food hygiene standards
Pair it with a full Meat Processing range for a complete line, or tell us your requirement and our 20-year export team specifies the build.
Buyer Questions
100-2000 Liters Steam Boiling Autoclave FAQs
What power supply does the boiling autoclave need?
The published figure is 15kW (100L)-120kW (2000L). We build to your local supply — state your voltage, phase and frequency with the enquiry and it is configured before shipment.
What is the boiling autoclave output capacity?
Rated at 100L-2000L (customizable to 2500L-5000L). Actual throughput depends on product size, moisture and loading pattern, so we size the unit against your own recipe rather than a catalogue number.
What temperature range does the boiling autoclave work across?
Equipped with an imported Siemens PLC system and a high-definition touchscreen, the device pre-sets 12 common meat cooking programs (beef, pork, chicken, duck, etc.). For example, chicken only needs 115℃, 0.12MPa pressure, and 25 minutes of heating—after setting, the device completes the entire.
How is the boiling autoclave controlled and automated?
Compared with semi-automatic equipment that requires manual pressure adjustment, this autoclave reduces human error by 90%. The built-in data storage function can record 1000 batches of cooking parameters, which is convenient for traceability when customers conduct quality inspections.
Can the boiling autoclave be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
