Vacuum Packing
Thermoforming Packaging Machine for Food

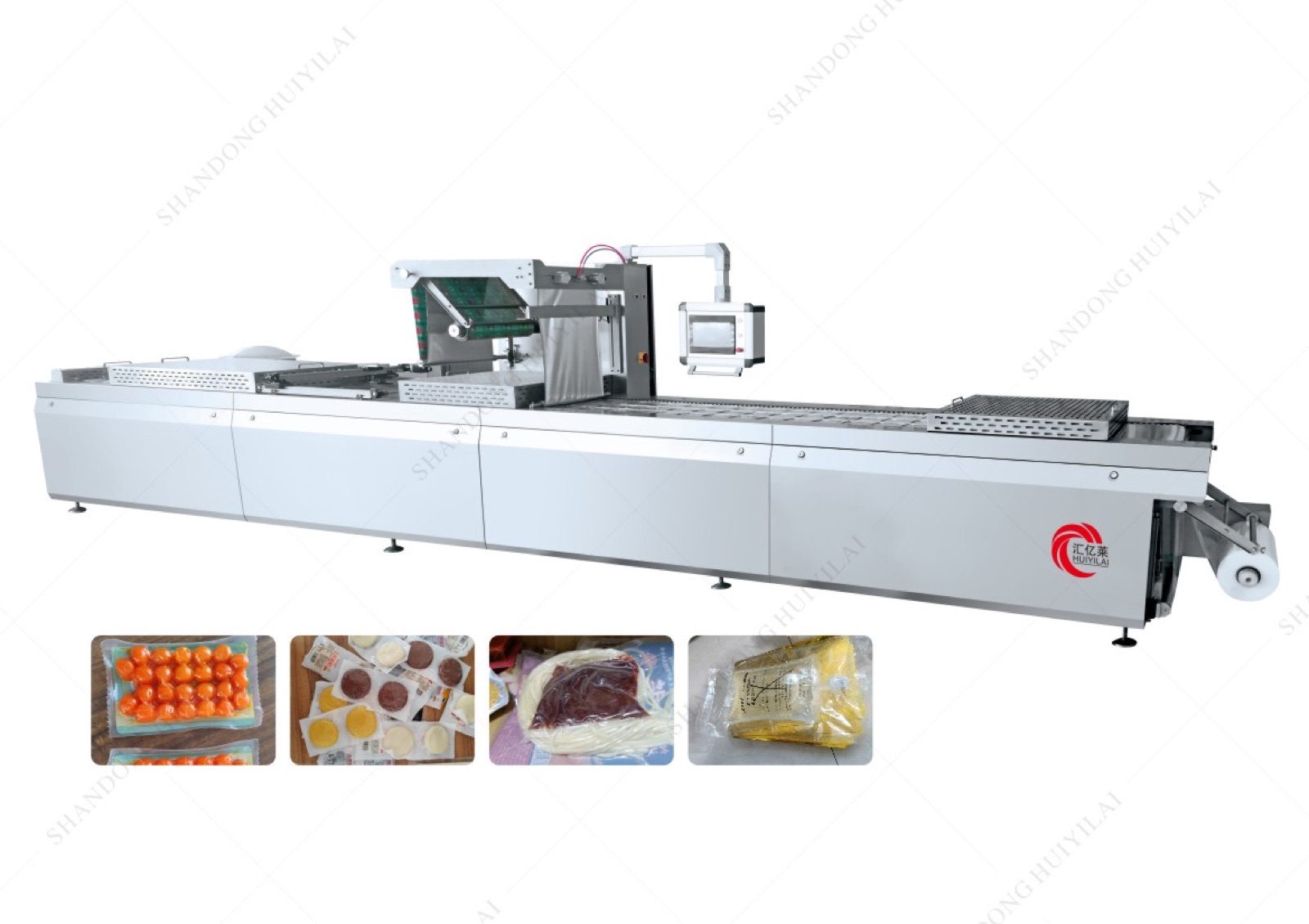

A thermoforming packaging machine makes its own pack: roll-stock film is heated and formed into trays, the product is filled, then top film is vacuum sealed — or gas flushed — and cut in one continuous pass. This high-speed thermoforming vacuum packaging machine (also called a roll-stock thermoformer or stretch film vacuum packing machine) is used for food, medical and industrial packing, with tray depth, film width and layout built to your product.
Specifications
| Size: | customerized according to customer details demand |
|---|---|
| Material: | food grade SS304 and others |
| POWER SUPPLY: | 380v/50HZ or customized |
| after sales service: | 1 year |
Why buyers choose it
- Servo-Driven Thermoforming: Precision heating (180-220°C) and mold forming create trays with 3mm wall thickness, supporting weights up to 500g per tray (e.g., pitted dates, date bars).
- Deep Vacuum Sealing: Achieves <1% residual oxygen with optional nitrogen flush, extending date shelf life from 6 to 18 months in ambient storage.
- Film Waste Recycling: Integrated edge trimmer reclaims 90% of scrap film for re-grinding, reducing material waste and production costs.
- Remote Diagnostics: Built-in IoT module allows real-time monitoring of film tension, seal temperature, and reject rates, with predictive maintenance alerts for blade wear.
Applications
Pack formats: formed trays in rigid or flexible film, MAP / gas-flushed trays for chilled protein and ready meals, and tight skin-pack style presentation packs — the format is set by the film structure and the forming mould, so tell us the pack you need to reproduce.
Confectionery Packaging: Forms trays for energy bars, nut clusters, and other sticky snacks, with tamper-evident seals for consumer safety.
Export Packaging: Creates moisture-proof packaging for international shipping, protecting dates from humidity during transit (ideal for Middle East, North Africa markets).
Private Label Services: Customizable mold designs and film printing options (up to 8 colors) for brand differentiation and shelf appeal.
Pair it with a full Vacuum Packing range for a complete line, or tell us your requirement and our 20-year export team specifies the build.
Buyer Questions
Thermoforming Packaging Machine for Food FAQs
What is a thermoforming packaging machine?
A thermoforming packaging machine forms the container itself instead of using pre-made trays or pouches. Bottom film is unwound, heated and drawn into a forming mould to create the tray; the product is filled; top film is laid on, air is evacuated (with optional nitrogen flush) and heat sealed; the web is then cut into finished packs and the edge trim is removed. Because forming, filling, sealing and cutting sit on one continuous web, it is also known as a roll-stock packaging machine or stretch film vacuum packaging machine.
Thermoforming vs vacuum chamber packaging — which do I need?
A chamber machine seals pre-made pouches: lower investment, very flexible for mixed products and small batches, and operator-paced. A thermoforming packaging machine forms its own tray from film on a continuous web, so it suits steady, higher-volume runs of the same pack, gives a firmer retail presentation and lets you change portion size by changing the mould rather than buying new bags. As a rule: pouches and low-to-medium volume favour a chamber machine; branded trays, MAP and continuous lines favour a thermoformer. Send your pack format and hourly target and we advise which fits.
How quickly can the mold be changed for different tray sizes?
Tool-free mold changeover takes <15 minutes, with automatic recipe recall for heating and forming parameters.
What is the maximum film width?
Standard model handles 500mm wide films, with custom versions available for 800mm width (suitable for jumbo trays).
Can it package wet dates (with syrup)?
Yes, optional anti-spatter sealing bars and deeper tray molds (up to 40mm depth) accommodate liquid-containing products.
What temperature range does the thermoforming packaging machine work across?
The servo-driven forming station heats the bottom film in the 180-220°C range, with the exact set point depending on film structure and tray depth; settings are recalled automatically per recipe so a repeat job forms the same tray.
Can the thermoforming packaging machine be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for Thermoforming Packaging Machine for Food
