Vacuum Packing

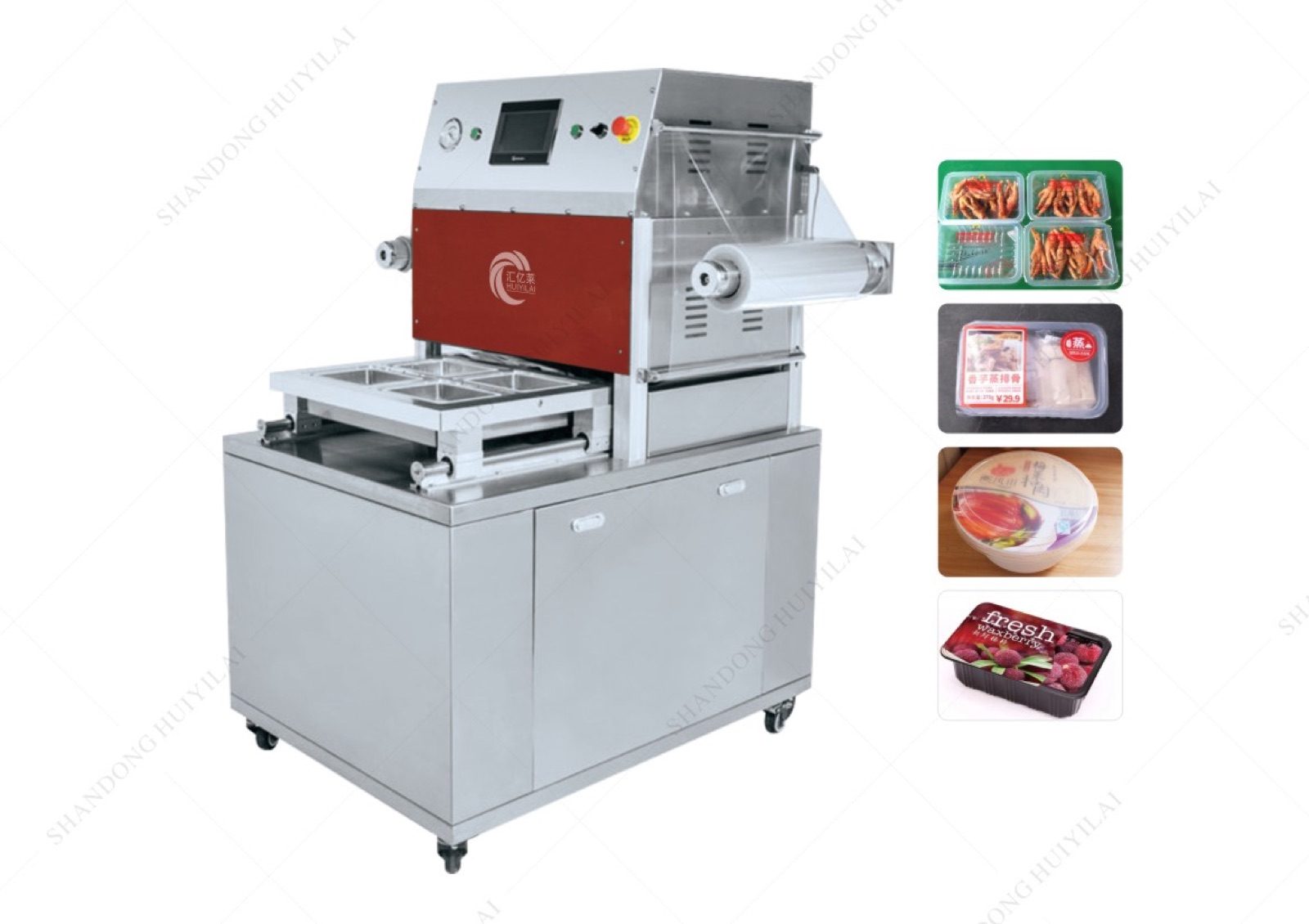

Box-Type Packaging Machine
Box-Type Packaging Machine: The Box Type Modified Atmosphere Vacuum Packaging Machine revolutionizes food preservation by replacing tray headspace air with a protective gas mixture (e.g., N₂, CO₂, O₂). Designed for high-volume production, it combines vacuum pre-pumping with.
Specifications
| Material: | food grade SS304 |
|---|
Why buyers choose it
- Precision Gas Mixing: Dual-mass flow controllers (accuracy ±1%) blend up to 3 gases, with programmable MAP recipes (e.g., 80% N₂ + 20% CO₂ for red meat) stored in the PLC system.
- High-Capacity Chamber: Processes up to 10 large boxes (500x300x100mm) per cycle, with adjustable chamber height to fit bulky items like whole chickens or cheese wheels.
- Leak Detection System: Post-sealing pressure decay test (±0.1mbar sensitivity) automatically rejects packages with faulty seals, improving production yield.
- Ergonomic Loading: Hydraulic lift table with adjustable height (700-1100mm) minimizes operator strain, suitable for both manual loading and conveyor integration.
Applications
Fresh Meat & Seafood: Maintains color and texture of beef, salmon, and shrimp by inhibiting bacterial growth (shelf life: 14-21 days for chilled products).
Bakery & Dairy: Preserves moisture in bread, pastries, and cheese by controlling oxygen levels (≤2%), preventing mold growth and staling.
Confectionery: Protects chocolates and nuts from oxidation with nitrogen-only flushing, maintaining crunchiness and flavor integrity.
Pair it with a full Vacuum Packing range for a complete line, or tell us your requirement and our 20-year export team specifies the build.
Buyer Questions
Box-Type Packaging Machine FAQs
How quickly can gas ratios be changed between batches?
Recipe switching takes <30 seconds, with automatic purge of gas lines to prevent cross-contamination between cycles.
What is the maximum packaging speed?
8-10 cycles per hour for full chamber loading, dependent on product size and gas flush duration.
Is nitrogen generation integration available?
Yes, optional on-site nitrogen generator (99.9% purity) reduces reliance on gas cylinders, ideal for remote or high-volume facilities.
How efficient is the box-type packaging machine in production?
Energy-Efficient Pumping: Oil-sealed rotary vane pump (160m3/h) with air-cooled condenser reduces power consumption by 20% compared to traditional models, while achieving deep vacuum (≤0.5mbar).
Can the box-type packaging machine be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for Box-Type Packaging Machine
