Auto Roll Stock Thermoforming Packager

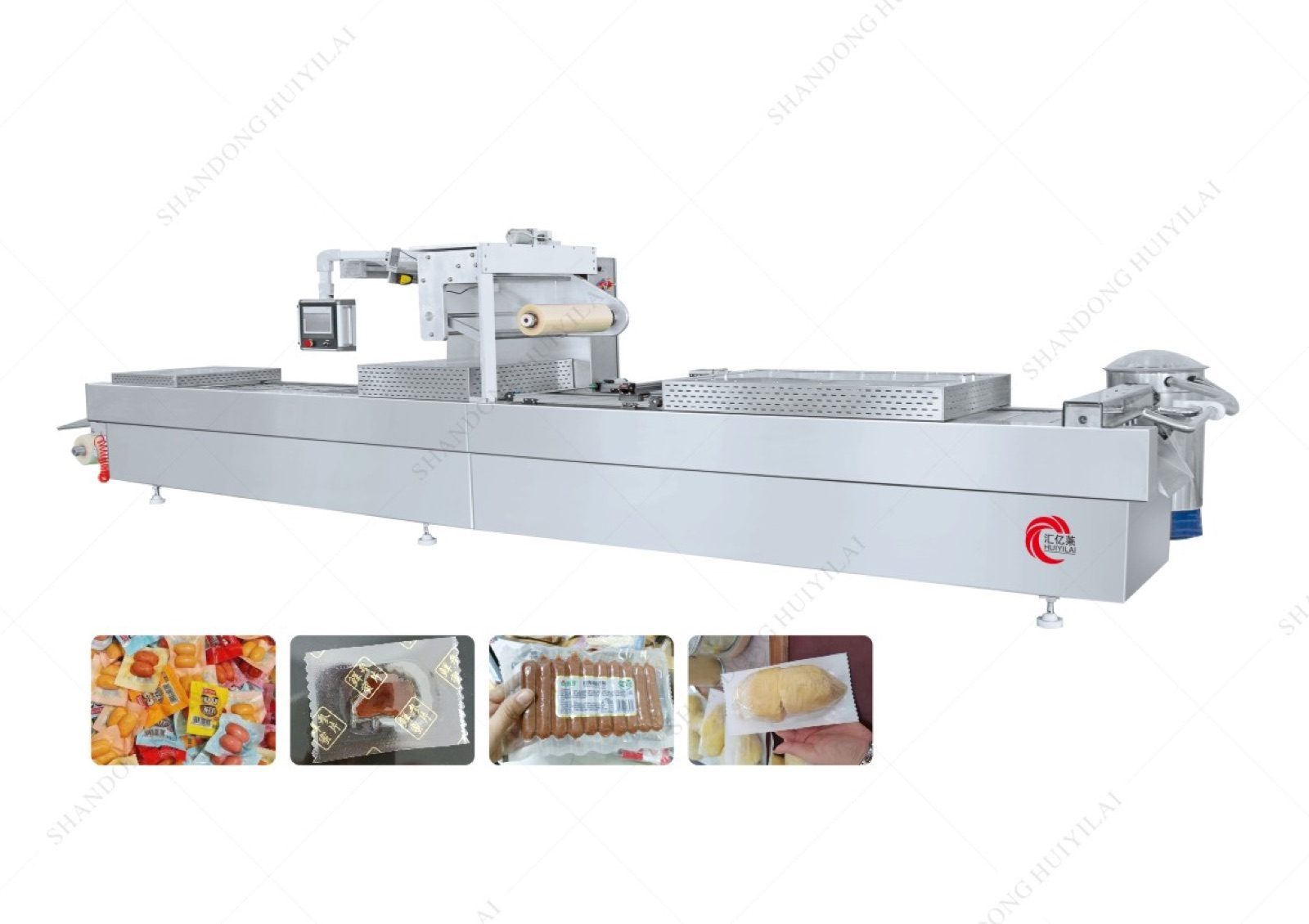

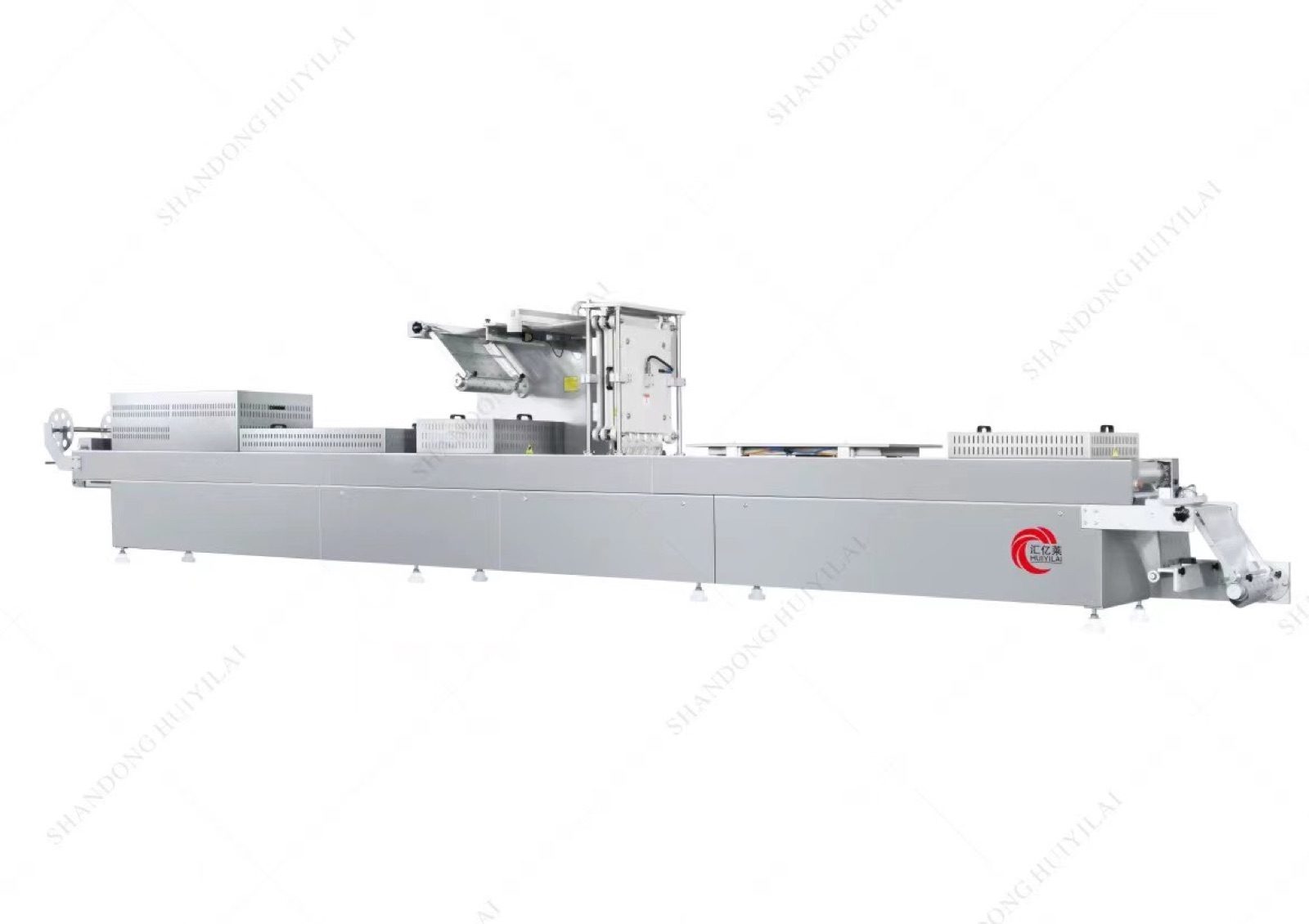

Auto Roll Stock Thermoforming Packager: The HYL Series Automatic Roll Stock Thermoforming Food Packaging Machine is an advanced integrated packaging solution designed for high-efficiency production lines. As a professional thermoforming packaging machine (also known as roll.
Specifications
| Material: | FOOD GRADE SS304 |
|---|---|
| Size: | DZR620, DZR520, DZR420 |
| Parameter | HYL-520 | HYL-420 | HYL-320 |
|---|---|---|---|
| Model | HYL-520 | HYL-420 | HYL-320 |
| Upper Film Width | 495 mm | 395 mm | 295 mm |
| Lower Film Width | 522 mm | 422 mm | 322 mm |
| Vacuum Level | ≤200 Pa | ≤200 Pa | ≤200 Pa |
| Compressed Air Requirement | ≥0.6 MPa | ≥0.6 MPa | ≥0.6 MPa |
| Cooling Water Pressure | ≥0.15 MPa | ≥0.15 MPa | ≥0.15 MPa |
| Power Supply | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Capacity | 12 KW | 10 KW | 7 KW |
| Dimensions (L×W×H) | 7500×1000×1750 mm | 5500×900×1750 mm | 4500×800×1750 mm |
| Weight | 2200 kgs | 1800 kgs | 1200 kgs |
| Core Material | Food-grade SS304 stainless steel | Food-grade SS304 stainless steel | Food-grade SS304 stainless steel |
Why buyers choose it
- Electric protection against phase loss, high/low voltage, and leakage.
- Safety switches and protective covers in molding chamber, heat sealing chamber, and cutting areas.
- Automatic machine shutdown and error display in case of faults, preventing accidents.
Applications
Ideal for packaging cheese, sausage, pickles, fresh meat, seafood, fruit jam, and chilled meat. The airtight vacuum seal locks in freshness and extends shelf life, suitable for large food processing plants and retail brands.
Protects metal parts, electronic components, and mechanical accessories from rust, dust, and moisture. Perfect for manufacturing and automotive industries.
Pair it with a full Vacuum Packing range for a complete line, or tell us your requirement and our 20-year export team specifies the build.
Buyer Questions
Auto Roll Stock Thermoforming Packager FAQs
How efficient is the auto roll stock thermoforming packager in production?
The HYL Series Automatic Roll Stock Thermoforming Food Packaging Machine is an advanced integrated packaging solution designed for high-efficiency production lines. As a professional thermoforming packaging machine (also known as roll stock packaging machine or stretch film vacuum packaging.
How is the auto roll stock thermoforming packager controlled and automated?
The machine integrates AF automatic feeding auxiliary system, automatic quantitative canning system, and laser ink jet printing, realizing fully automated production from material feeding to finished packaging.
How is the auto roll stock thermoforming packager built for food-plant conditions?
Swiss customized wear-resistant linear bearings reduce friction and extend service life.
What is involved in installing the auto roll stock thermoforming packager?
The computer fault intelligent processing system automatically detects issues (e.g., phase loss, high/low voltage, leakage) and stops operation, displaying error reasons. Safety switches and protective covers are installed in key areas for operator protection.
Can the auto roll stock thermoforming packager be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for DZR620, DZR520, DZR420, HYL-520, HYL-420, HYL-320
