Industrial Autoclave
Water Spray Steam Retort Autoclave Sterilizer
Water Spray Steam Retort Autoclave Sterilizer: Apllication:Food & beverage products high temerpature high pressure sterilization.
Specifications
| Designed Temperature | 147 |
|---|---|
| Designed Pressure | 0.35 |
| application field | Manufacturing Plant, Food & Beverage Factory |
| core components | PLC, Engine, Motor, Pressure vessel, Pump |
| heating way | Steam Heating Boiler \Electric Heating |
| sterilizer way | Steam/water/spray |
| Item name | Specification |
| Inner diameter/length/capacity | 1200mm/3600mm/4.6cbm |
| Thickness of shell | 5 mm |
| Material | SS304 |
| Heating way | Steam directly |
| Cooling way | Fully water |
| Features | Fast sterilization, shorten the come-up time, reduce heat treatment, protect food taste and color |
| Max working temperature | Sterilization temperature max temperature 130 °C. Sterilization temperature adjustable. |
| Max working pressure | 0.3 Mpa |
| Control | Full-automatic |
| Baskets | 900*800*800mm |
| Installation power | 380v,50hz, 16.5 kw |
| Occupied Area | 5200X1950X3400mm |
| Weight | 3000kg |
Why buyers choose it
- Apllication:Food & beverage products high temerpature high pressure sterilization.

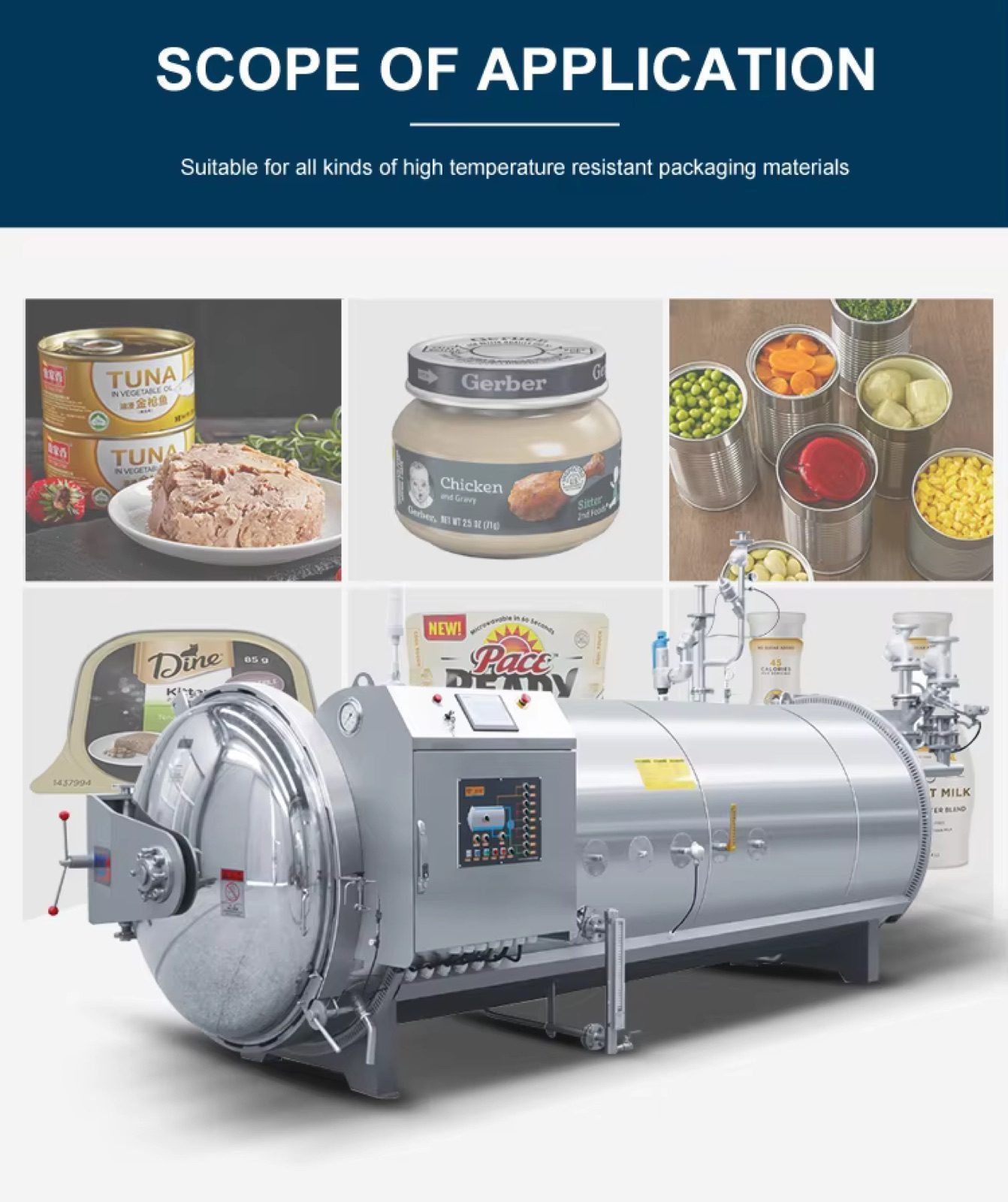

- Suit for:All kinds of heat resistant and water proof package materials.
- Such as:pouches,cans,glass jars,plastic containers...
- 1. Idirect heating and cooling,avoid secondary pollution.
- 2.Heating and cooling gradually,prevent products from being damaged by big heat shock.
Applications
Apllication:Food & beverage products high temerpature high pressure sterilization.
Suit for:All kinds of heat resistant and water proof package materials.
2.Heating and cooling gradually,prevent products from being damaged by big heat shock.
5.Use small amout of soft water as process water,save enery,make sure good product appearance.
Pair it with a full Industrial Autoclave range for a complete line, or tell us your capacity and we size the right model.
Buyer Questions
Water Spray Steam Retort Autoclave Sterilizer FAQs
What material are the retort autoclave sterilizer contact parts made of?
Contact parts are SS304. Tell us your product's acidity, salt level and wash-down routine so we can confirm the finish is right for your line.
What safety features does the retort autoclave sterilizer include?
Fast sterilization, shorten the come-up time, reduce heat treatment, protect food taste and color
What temperature range does the retort autoclave sterilizer work across?
Sterilization temperature max temperature 130 °C. Sterilization temperature adjustable.
What are the published specifications of the retort autoclave sterilizer?
Key published figures are designed temperature: 147; designed pressure: 0.35; application field: Manufacturing Plant, Food & Beverage Factory; core components: PLC, Engine, Motor, Pressure vessel, Pump; heating way: Steam directly. Anything not listed is confirmed in writing on the quotation once we know your product and target output.
Can the retort autoclave sterilizer be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for Water Spray Steam Retort Autoclave Sterilizer
