Fruit & Vegetable Washing

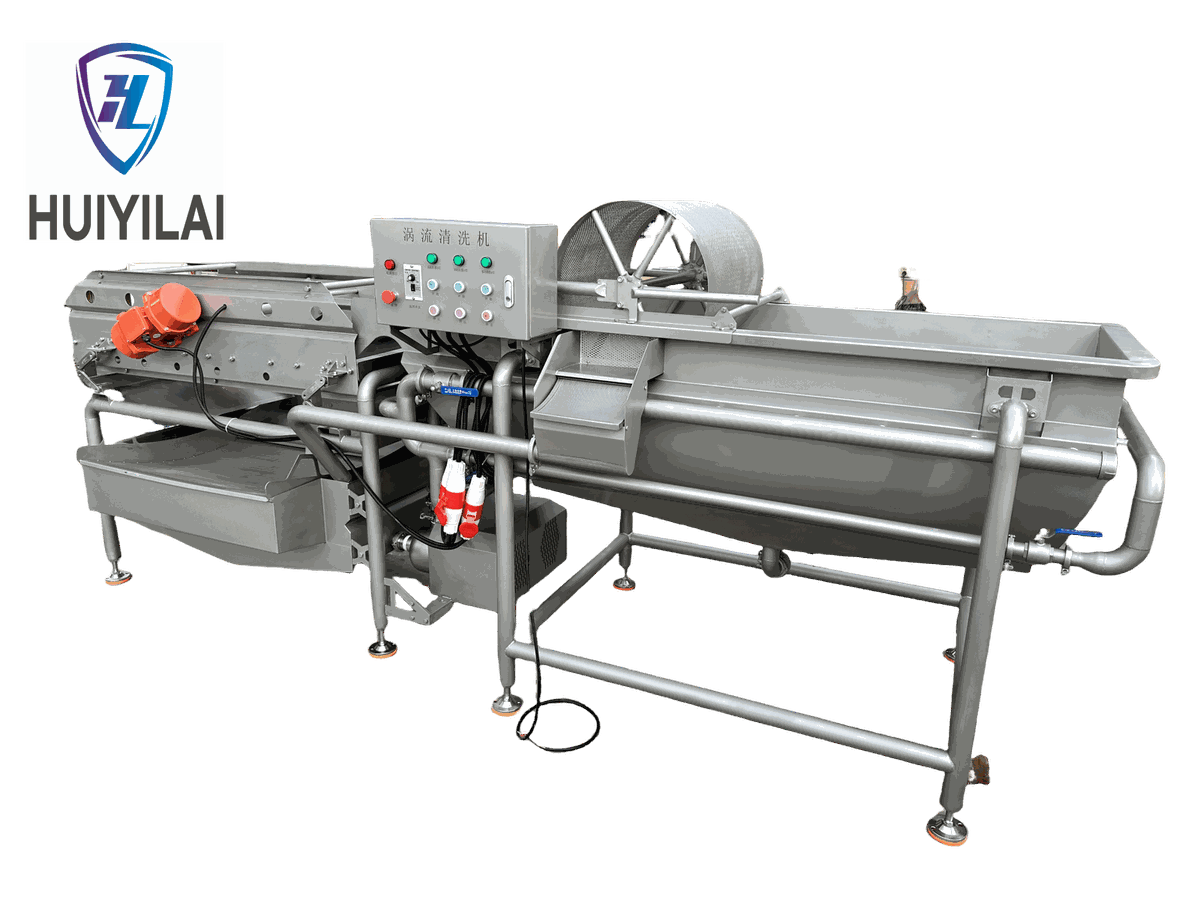

Vortex Cleaning Line for Root Vegetables
Vortex Cleaning Line for Root Vegetables: The Vortex Cleaning Assembly Line optimizes pre-processing for potatoes, cassava, carrots, and ginger, combining high-pressure washing with gentle agitation to remove soil, wax, and surface contaminants. Designed for root vegetable.
Specifications
| MATERIAL | Food Grade SS304 |
|---|
Why buyers choose it
- First Chamber: 500rpm vortex drum with rubber baffles loosens stubborn dirt (clay, sand) from crevices.
- Second Chamber: 300rpm polishing drum with food-grade brushes removes residual debris and wax coatings.
- High-Efficiency Water Recycling: 90% of washing water reused via a three-stage filtration system (50μm, 20μm, 5μm), reducing freshwater consumption to 0.8m3/ton.
- Anti-Compression Design: Spiral conveyor with 50mm spacing prevents bruising, while the inclined drum (15° angle) ensures continuous material flow without jams.
- Hygienic Elevation: Stainless steel legs (400mm height) facilitate floor cleaning, with quick-release drain valves for complete water evacuation during CIP.
Applications
Potato Processing Plants: Preps tubers for chips, fries, and starch extraction, achieving <0.1% residual soil after cleaning.
Cassava & Yam Factories: Removes tough outer dirt and cyanogenic residues from cassava roots, meeting FAO standards for safe edible processing.
Ginger & Carrot Producers: Gentle cleaning preserves skin integrity for fresh market produce, with optional brush hardness (soft for ginger, medium for carrots).
Organic Farms: Chemical-free cleaning using only water and air agitation, compliant with USDA NOP and EU Organic regulations.
Pair it with a full Fruit & Vegetable Washing range for a complete line, or tell us your capacity and we size the right model.
Buyer Questions
Vortex Cleaning Line for Root Vegetables FAQs
Can it clean sprouted potatoes?
Yes, the vortex action removes sprouts ≤5mm without damaging the tuber; larger sprouts require pre-trimming.
What is the minimum produce size?
Processes items ≥30mm in diameter; smaller roots (e.g., baby carrots) require optional mesh inserts to prevent slippage.
How is water temperature controlled?
Integrated heat exchanger maintains washing water at 15-25°C, preventing enzyme activation and preserving produce crispness.
What material are the cleaning line for root vegetables contact parts made of?
Contact parts are Food Grade SS304. Tell us your product's acidity, salt level and wash-down routine so we can confirm the finish is right for your line.
Can the cleaning line for root vegetables be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for Vortex Cleaning Line for Root Vegetables
