Food Dryer

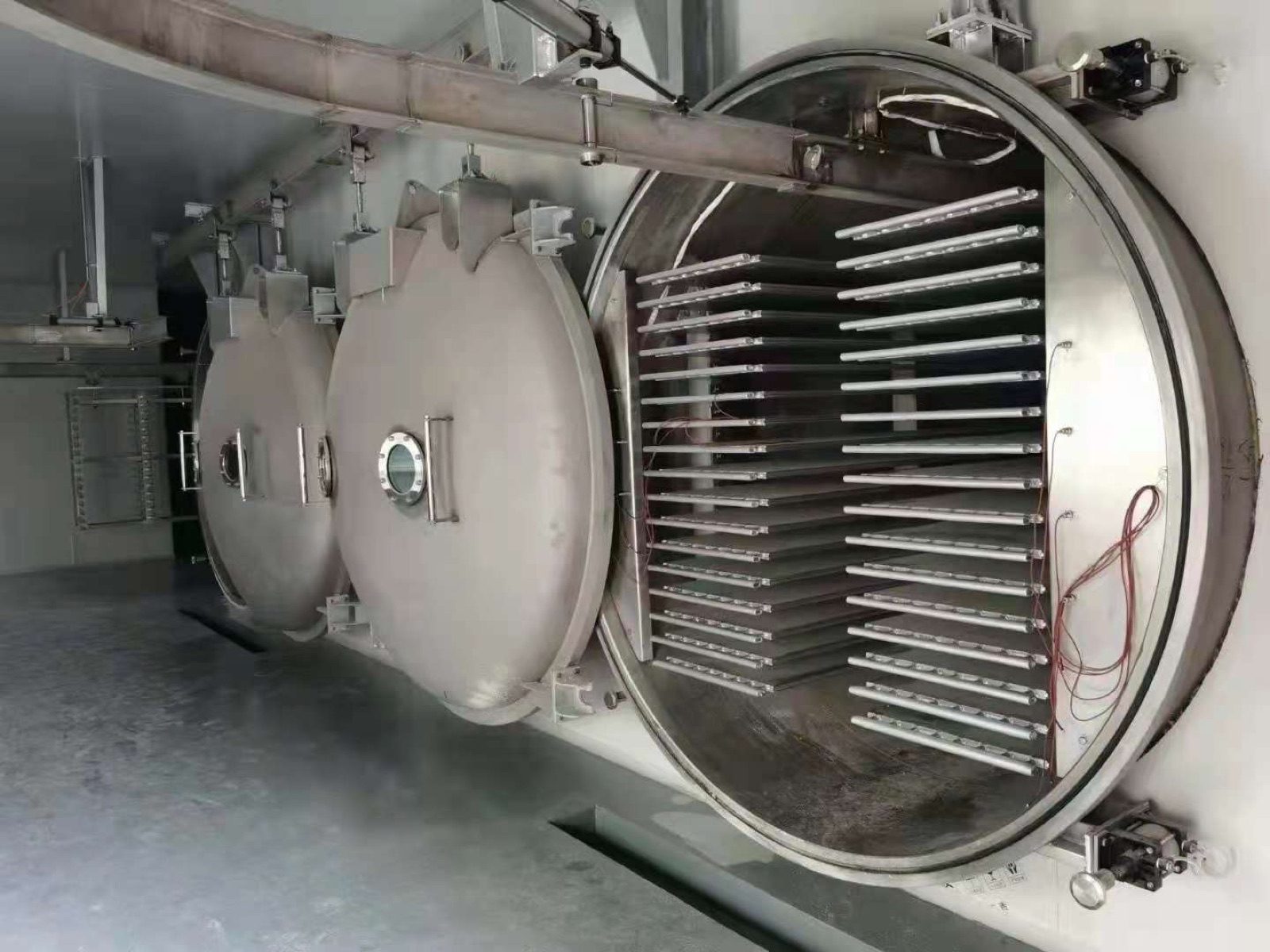

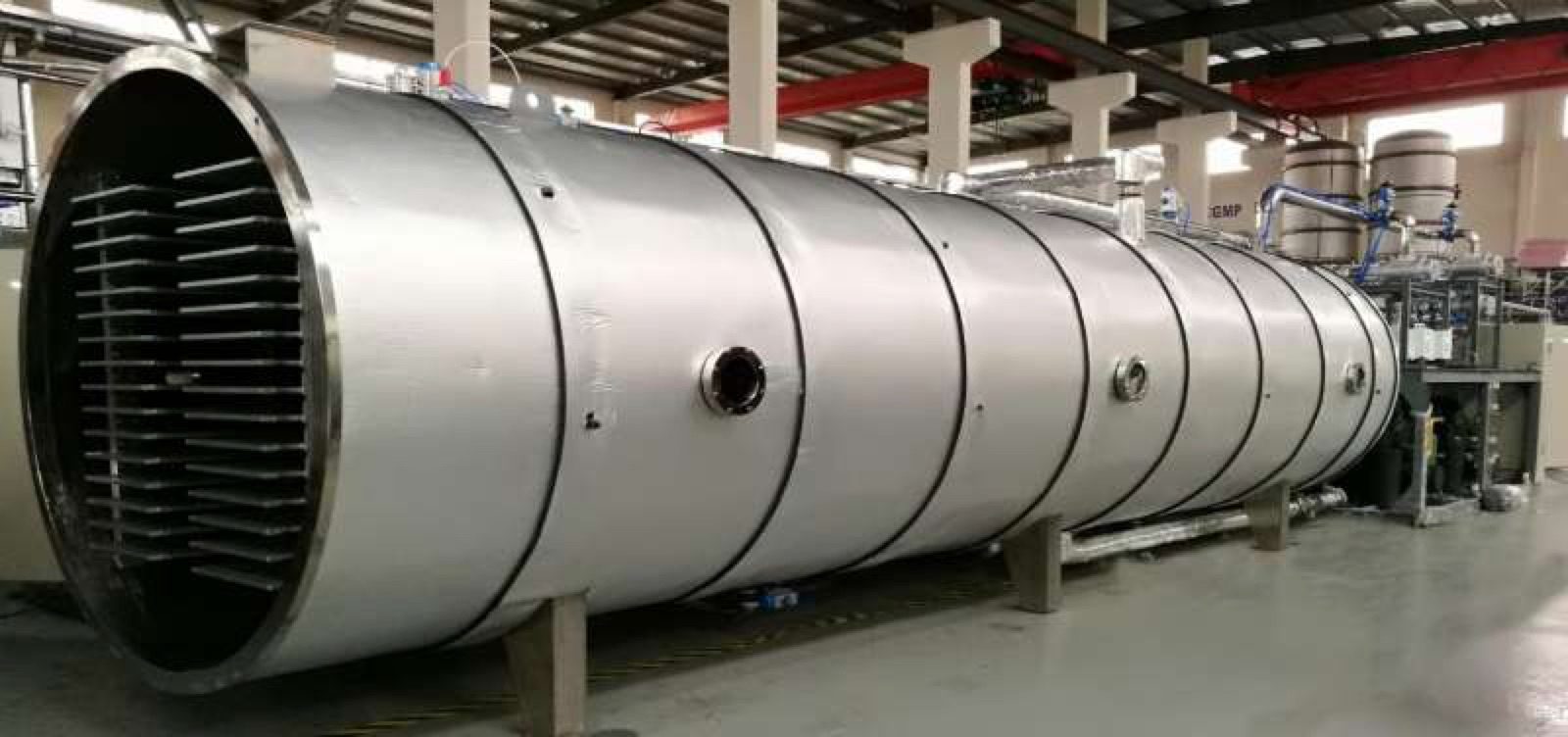

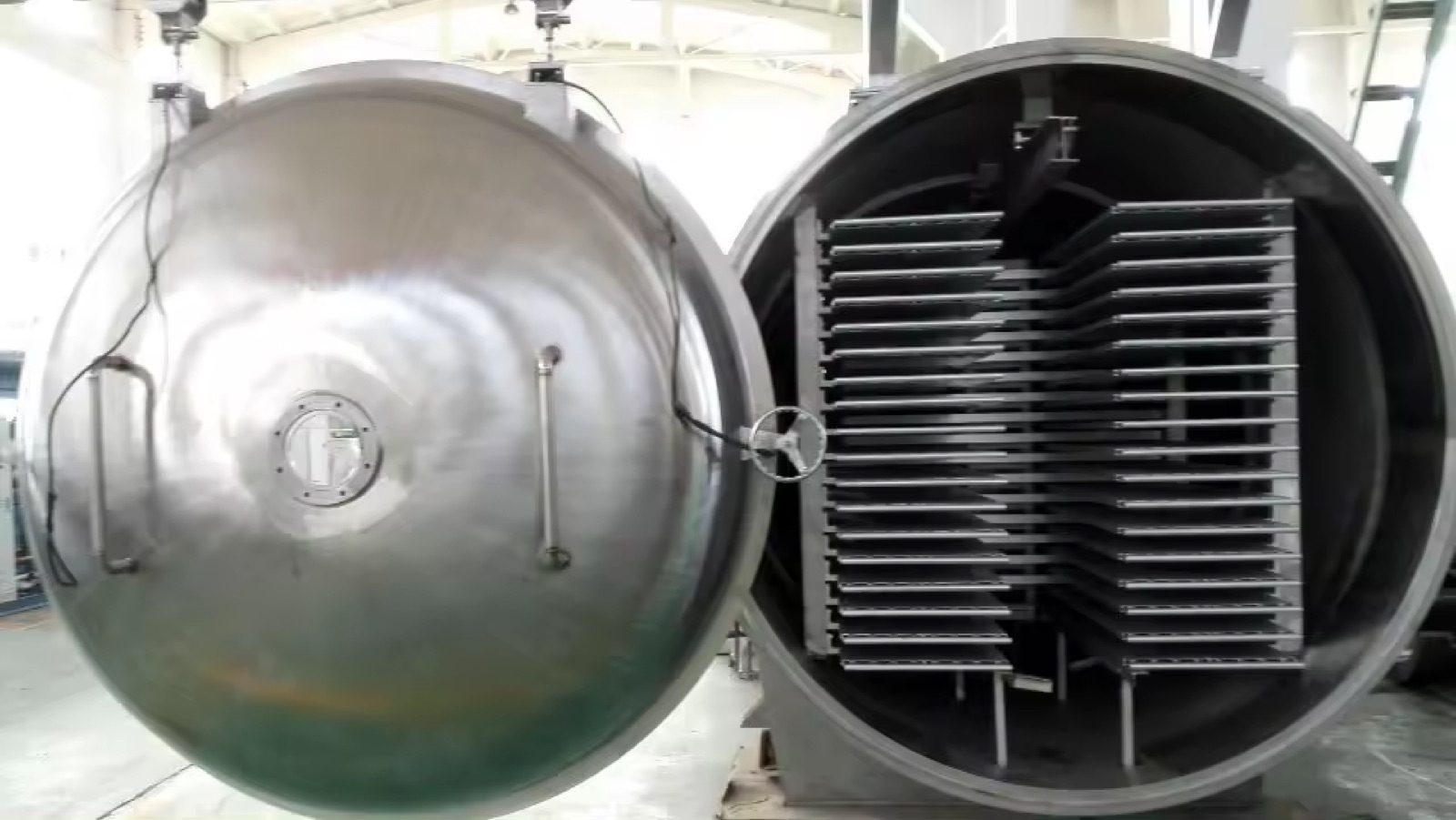

Large-Scale Food Freeze Dryer Continuous
Large-Scale Food Freeze Dryer: Feed rate of extraction solution containing 45% dry matter (kg/h)
Specifications
| Material: | food grade SS304 and other good quality materials |
|---|---|
| voltage: | 440V/60Hz/3P or 380V/50Hz/3P |
| Model | HYLXFD-200 | HYLXFD-300 | HYLXFD-500 | HYLXFD-600 | HYLXFD-900 | HYLXFD-1200 |
|---|---|---|---|---|---|---|
| Feed rate of extraction solution containing 45% dry matter (kg/h) | 474 | 711 | 1185 | 1423 | 1897 | 12845 |
| Capacity(kg) | 220 | 330 | 544 | 660 | 872 | 1320 |
| 24 hours output (kg/day) | 5280 | 7920 | 13066 | 15840 | 20928 | 31680 |
| Feed rate of extraction solution containing 25% dry matter (kg/h) | 313 | 469 | 780 | 937 | 1249 | 1874 |
| Capacity(kg) | 81 | 121 | 201 | 241 | 322 | 482 |
| 24 hours output (kg/day) | 1933 | 2900 | 4826 | 5800 | 7728 | 11600 |
| Feed rate of extraction solution containing 15% dry matter (kg/h) | 170 | 256 | 427 | 512 | 684 | 1022 |
| Capacity(kg) | 26 | 40 | 65 | 79 | 105 | 158 |
| 24 hours output (kg/day) | 632 | 948 | 1573 | 1896 | 2520 | 3792 |
| Freezing temperature | -30℃~-60℃(Can design) |
|---|---|
| Condenser temperature | -50℃~-80℃(Can design) |
| Heating way | Silicone oil ,Electric heating |
| Vacuum degree | ≥1Pa |
Why buyers choose it
- Seamless Operation: Unlike batch processing, our continuous system runs without interruption, eliminating idle time and optimizing steps like cooling, refrigeration, and vacuum cycles.
- Energy Efficiency: This system significantly reduces energy use, cutting installed power by 21-30% and refrigeration needs by up to 40%, helping to reduce overall operational costs by 25%.
- Precise Drying Control: With multiple temperature control zones and an automated system, the machine precisely monitors and adjusts the drying process, ensuring consistent product quality.
Applications
Feed rate of extraction solution containing 45% dry matter (kg/h)
Feed rate of extraction solution containing 25% dry matter (kg/h)
Feed rate of extraction solution containing 15% dry matter (kg/h)
Remark: Here also Can produce vacuum freeze-drying machines ranging from 5kg to 3000kg according to customer requirements
Pair it with a full Food Dryer range for a complete line, or tell us your requirement and our 20-year export team specifies the build.
Buyer Questions
Large-Scale Food Freeze Dryer Continuous FAQs
What maintenance does the large-scale food freeze dryer need?
A vacuum freeze dryer preserves food’s natural color, aroma, and flavor by retaining pigments and minimizing the loss of aromatic compounds. This method also excels in preserving proteins compared to traditional cryopreservation. Freeze drying ensures that food maintains its original texture and.
What temperature range does the large-scale food freeze dryer work across?
Smart Heating & Cooling: The freeze-dryer uses heat recovery refrigeration, which helps minimize boiler investment. Its system automatically adjusts refrigeration capacity based on production demands, ensuring energy savings.
How efficient is the large-scale food freeze dryer in production?
Optimized Refrigeration: The system features a dual-stage refrigeration process for better performance and lower energy input. Additionally, it uses both built-in and external cold traps, with smart ice melting and cooling that adapts to production needs.
How is the large-scale food freeze dryer controlled and automated?
User-Friendly Touchscreen Control: Provides seamless operation with real-time monitoring, enabling precise control over the freeze-drying process for consistent results.
Can the large-scale food freeze dryer be customised?
Yes. Capacity, dimensions and voltage are configured to your facility. Send your layout and target output and our engineering team specifies the build.
Request a quote for HYLXFD-200, HYLXFD-300, HYLXFD-500, HYLXFD-600, HYLXFD-900, HYLXFD-1200
